How to add a function (LAPC)

To add a new function:

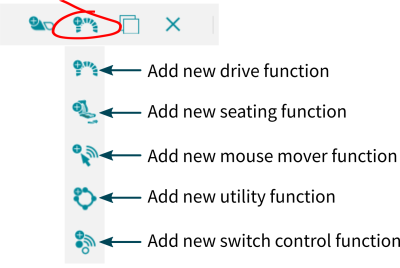

1. Click the Add function button.
2. Select a function from the drop-down list:

• New Drive Function
• New Seating Function
• New Mouse Mover Function
• New Utility Function
• New Switch Control Function

• If New Drive Function is selected in step 2 above, the next steps are detailed in Adding new drive function.
• If New Seating Function, New Mouse Mover Function or New Utility Function is selected in step 2 above, the next steps are detailed in Adding new seating, mouse mover, utility or switch control function.



Adding new drive function

When adding a drive function from step 2 above, the New Drive Function dialog box appears. In this dialog box, you have a choice to add the new drive function with default values or add it with values from a template.

Drive function based on default values

1. Enter a function name.
2. Select the New Function tab
3. Select a user input from the User Input list.
4. Click Create.
5. Click the Write button to write the program to the chair; or, on the Application menu, save your changes to a file.

Drive function from template

1. Enter a function name.
2. Select the From Template tab.
3. Select a template from the template list.
4. Click Create.
5. Click the Write button to write the program to the chair; or, on the Application menu, save your changes to a file.

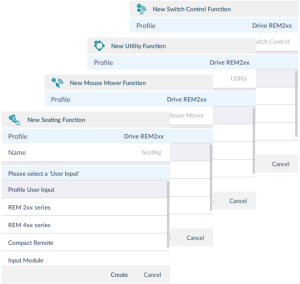

Adding new seating, mouse mover, utility or switch control function

For seating, mouse mover and utility functions, in the dialog box that appears:

1. Enter a function name.
2. Select a user input from the user input list.
3. Click Create.
4. Click the Write button to write the program to the chair; or, on the Application menu, save your changes to a file.
