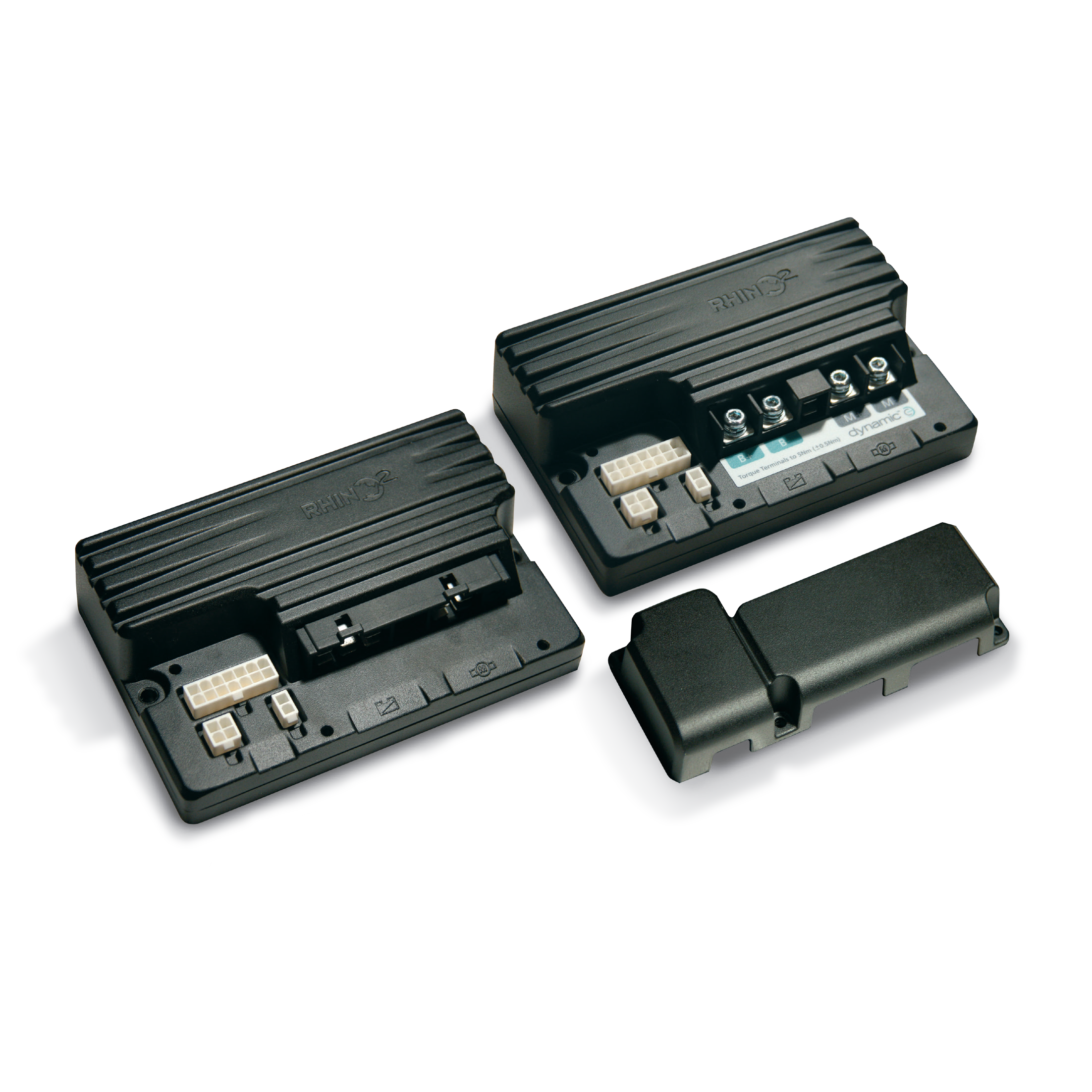

Rhino2
The Rhino2 family of controllers give you the performance and reliability you need for all your large scooter applications. Rhino2 packs higher performance and functionality into a compact and rugged frame that is built to handle demanding conditions.
Features that matter
IP54 weatherproofing for maximum reliability in harsh environments
Robust data transfer enables you to track use and diagnose faults remotely*
Motor open circuit testing maximises safety and reliability
Speed reductions when dashing down slopes to keep your heavy, high-speed scooters under control at all times
Flexible battery management settings for compatibility with a range of battery types
2 drive profiles with programmable acceleration and deceleration instead of just reduced speed the best drive experience for your users
Park brake release button to enable the tightest packaging for small and light scooters
*When used with an appropriate IoT connectivity device
|
Technical Specifications
|
|||||
|---|---|---|---|---|---|
|
Part Number
|
Description
|
Peak Current
|
Peak Current Duration
|
Continuous Current
|
Boosted Current (10 Sec)
|
|
Rhino2 Classic range
|
|
|
|
|
|
|
DS70C
|
70 Amp Controller
|
70 Amp
|
60 seconds
|
25 Amp
|
90 Amp
|
|
DS110C
|
110 Amp Controller
|
110 Amp
|
60 seconds
|
43 Amp
|
130 Amp
|
|
DS160C
|
160 Amp Controller
|
160 Amp
|
60 seconds
|
50 Amp
|
180 Amp
|
|
Original Rhino2 range
|
|
|
|
|
|
|
DS90
|
90 Amp Controller
|
90 Amp
|
3 minutes
|
36 Amp
|
100 Amp
|
|
DS120
|
120 Amp Controller
|
120 Amp
|
3 minutes
|
48 Amp
|
140 Amp
|
|
DS160
|
160 Amp Controller
|
160 Amp
|
3 minutes
|
64 Amp
|
180 Amp
|
|
DS180
|
180 Amp Controller
|
180 Amp
|
60 seconds
|
64 Amp
|
200 Amp*
|
Frequently asked questions
What type of scooters is the Rhino2 controller suitable for?
The Rhino2 controller is designed for use in mid to high-end powered mobility scooters, especially those requiring robust performance, higher current support, and outdoor reliability.
Is the Rhino2 controller weather-resistant?
Yes, Rhino2 features a sealed, weather-resistant enclosure (rated to IP54) that protects it from moisture and dust, making it ideal for outdoor environments and all-weather use.
Can Rhino2 be used with different types of motors?
Rhino2 supports a wide range of PMDC (Permanent Magnet DC) motors and is optimised for high-power motor control, providing smooth, responsive performance even on challenging terrain.
Does the Rhino2 support additional accessories?
Yes, Rhino2’s modular system allows integration with accessories such as lighting, charging ports, horn, and more. It also supports various input devices for flexible control options.
How is the Rhino2 controller programmed or configured?
Rhino2 is programmed using Dynamic Controls’ setup tools, which allow technicians to easily adjust drive profiles, configure settings, and run diagnostics for servicing and support.
What safety features are included in the Rhino2?
Rhino2 includes built-in safety and diagnostic monitoring, such as thermal protection, battery voltage checks, motor stall detection, and system error alerts to ensure safe and reliable operation.
