Accessory Modules
Need extra smarts? Auxiliary modules extend functionality of remotes, actuators and power modules without a tangle of cables.
Drop one on the CAN bus and you instantly gain advanced traction control with Gyro scope feedback, extra user switch inputs, environmental controls. The system auto-detects each module, so expansion is fast, clean, and future-proof.
A 10-Way Switch Box
A 10-Way Switch Box gives simple, reliable control of almost any LiNX output. Ten tactile buttons sit in one slim, low-profile case. It plugs into any GPI or GPIO port on power, actuator, or other modules. Program each switch for profile changes, seating moves, lighting, environmental devices, or the horn. The medically rated design turns complex tasks into quick one-touch actions, helping users with limited dexterity stay in charge.

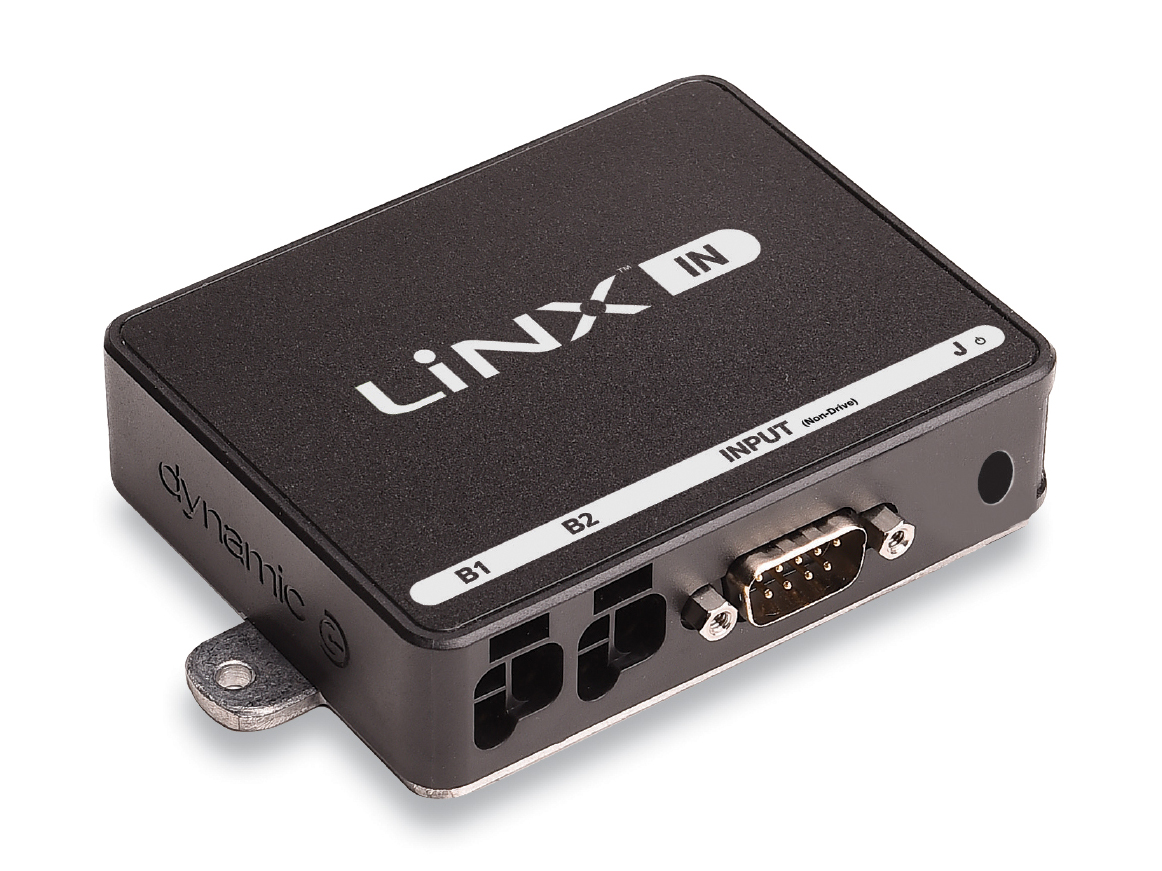

IN200 – Switch Input Module
IN200 is a CAN module that lets you simply add switches to any non-LE LiNX system. It adds up to eight digital GPIs that can be configured as any digital input except for drive control using LiNX Access.

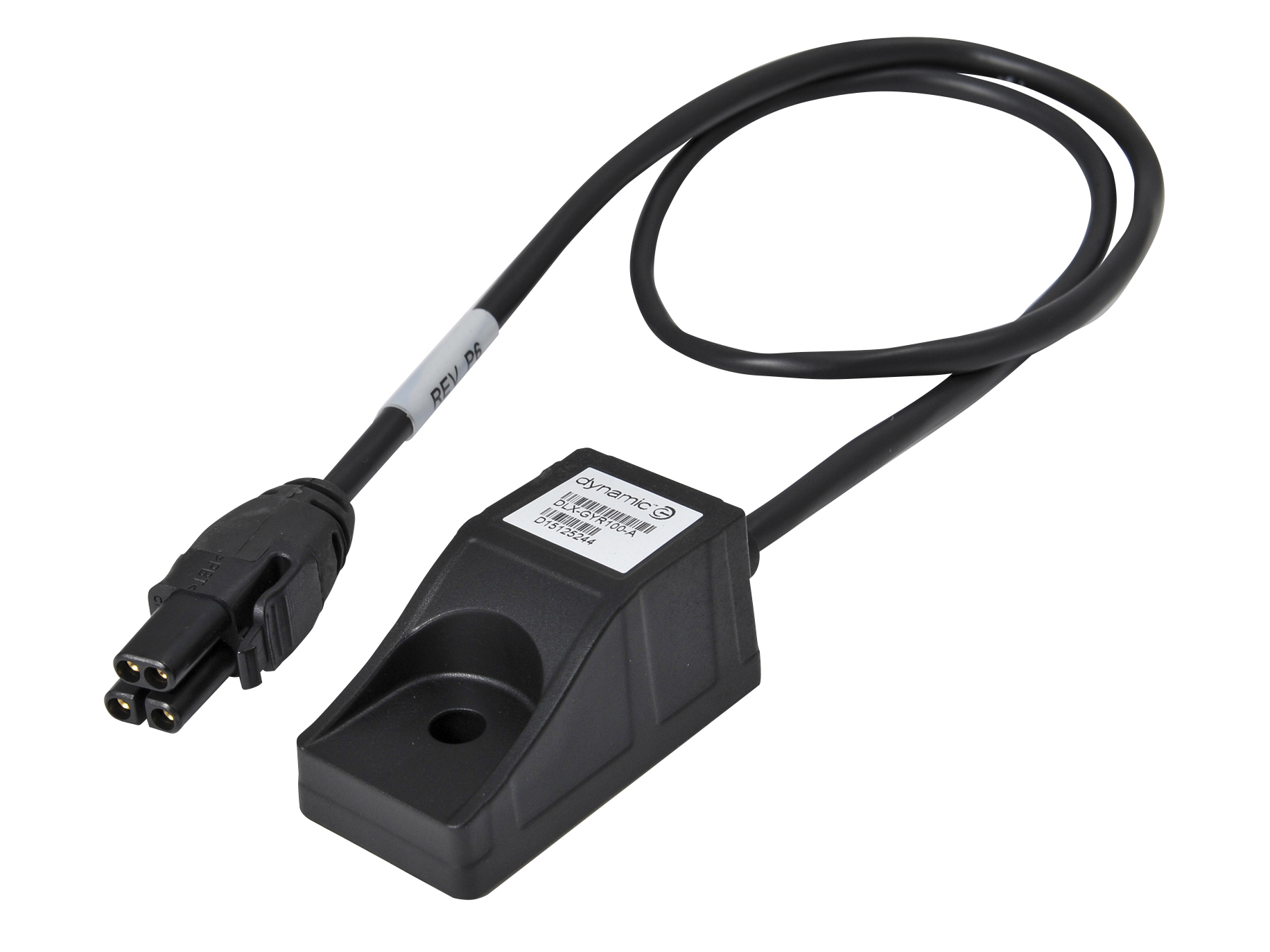

GYR100
GYR100 clips onto the LiNX CAN bus and removes veer. It senses yaw and corrects cross-slopes, tyre mismatch, load shifts, and traction loss. Riders travel straighter and safer with less effort. Batteries last longer and tuning takes minutes due to automatic calibration. Use it on front-wheel and mid-wheelchairs, or any chair where traction fails. The module is especially helpful for users who drive with switch inputs.

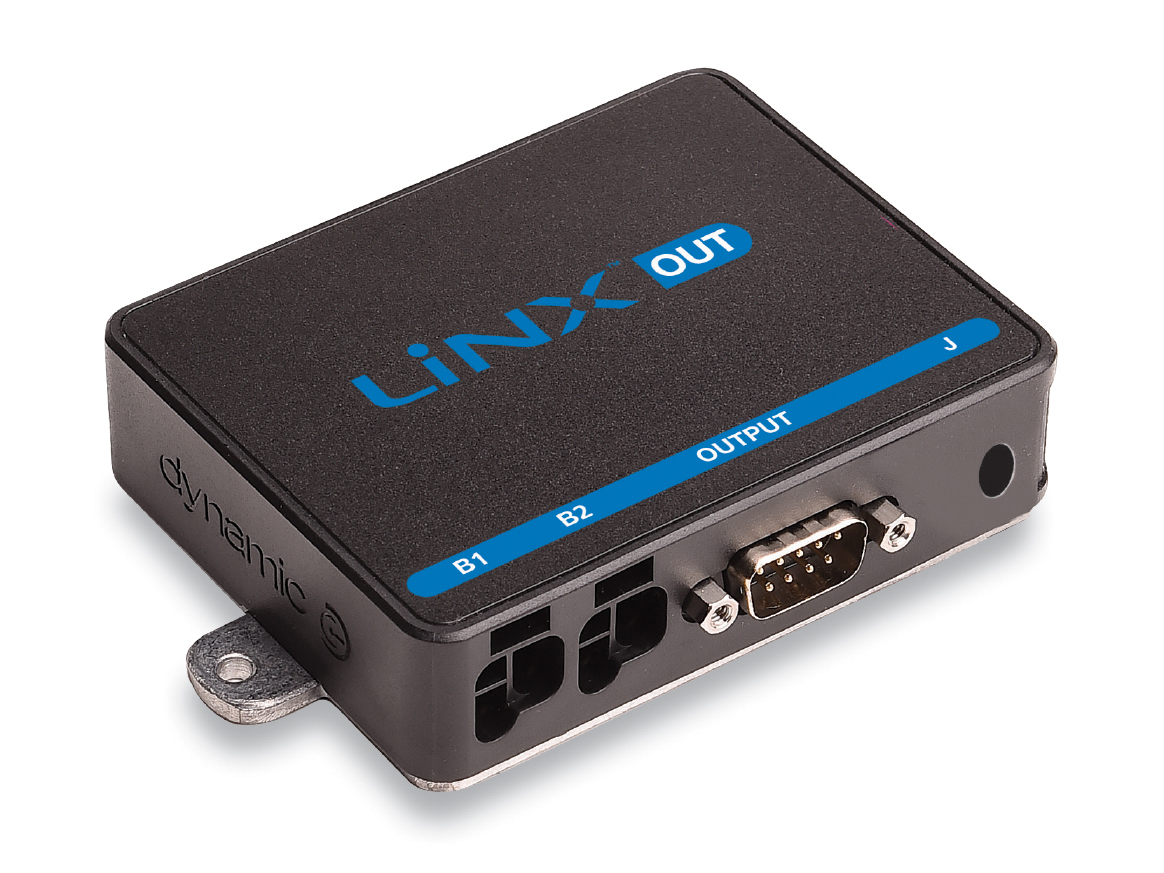

OUT500 – LiNX Output Module
OUT500 adds low-current, software-controlled outputs to the LiNX system. Used to switch externally powered 3rd party systems or devices to control seat lifts, lights, vents, or custom accessories through one compact box. Controls up to 10 outputs using either the DB9 connector (with 8 outputs) and/or the stereo jack plug (with 2 outputs).

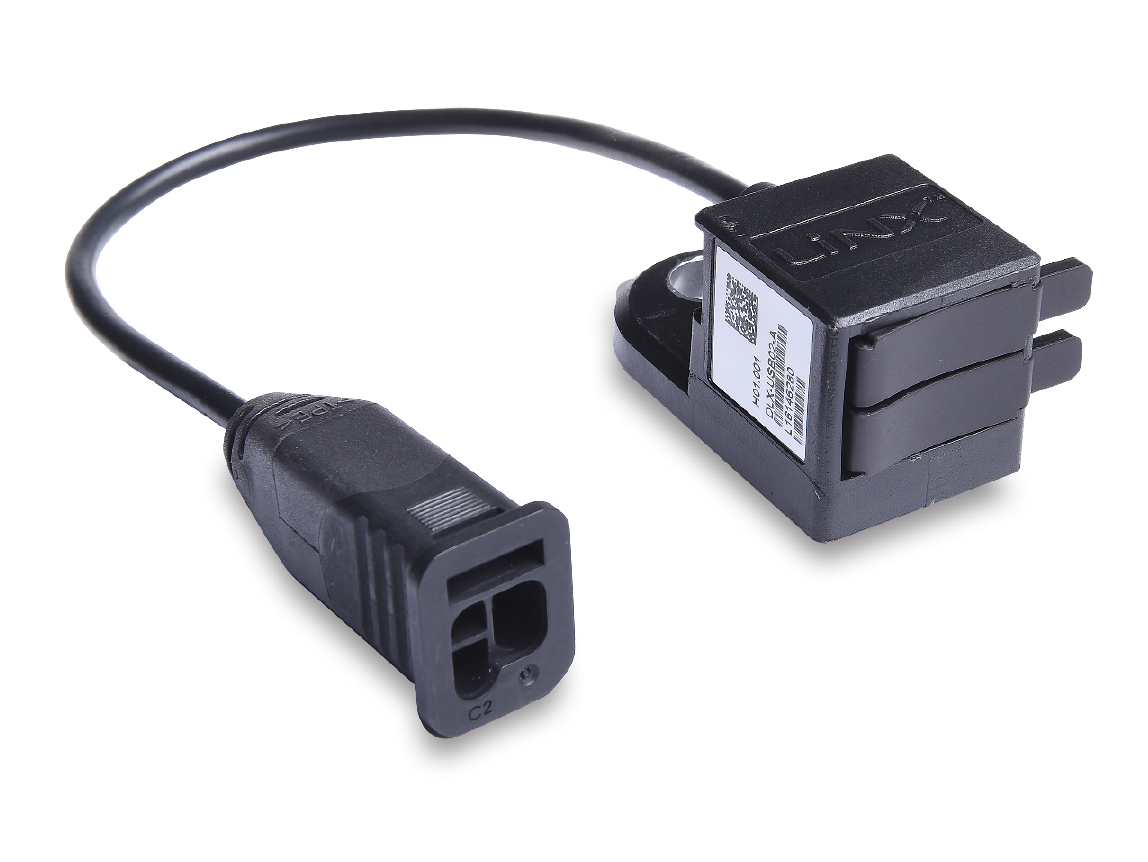

DLX-USB02-A - LiNX USB Charger
Connects direct to the CAN bus to provide 2 USB charging ports each with 1 Amp.
Available documents to download
NOTE: Please refer to the page 11 of LiNX Product Catalogue
Frequently asked questions
What does GYR100 do?
GYR100 senses yaw and corrects drift, giving straighter travel on slopes and rough ground.
What can OUT500 power?
OUT500 switches 10 low-current outputs for seat lifts, lighting, ventilators, and other accessories.
Does the USB charger drain batteries?
No. DLX-USB02-A shuts off automatically when battery voltage falls too low.
