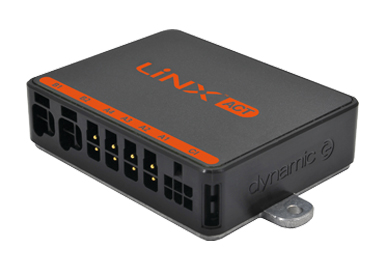

The LiNX actuator modules are simple to set up yet highly configurable. Proportional joystick-controlled actuators give smooth, fine control of seating for improved comfort. Both two and four channel actuator modules are available with multiple modules allowing control of up to 12 actuators with minimal wiring

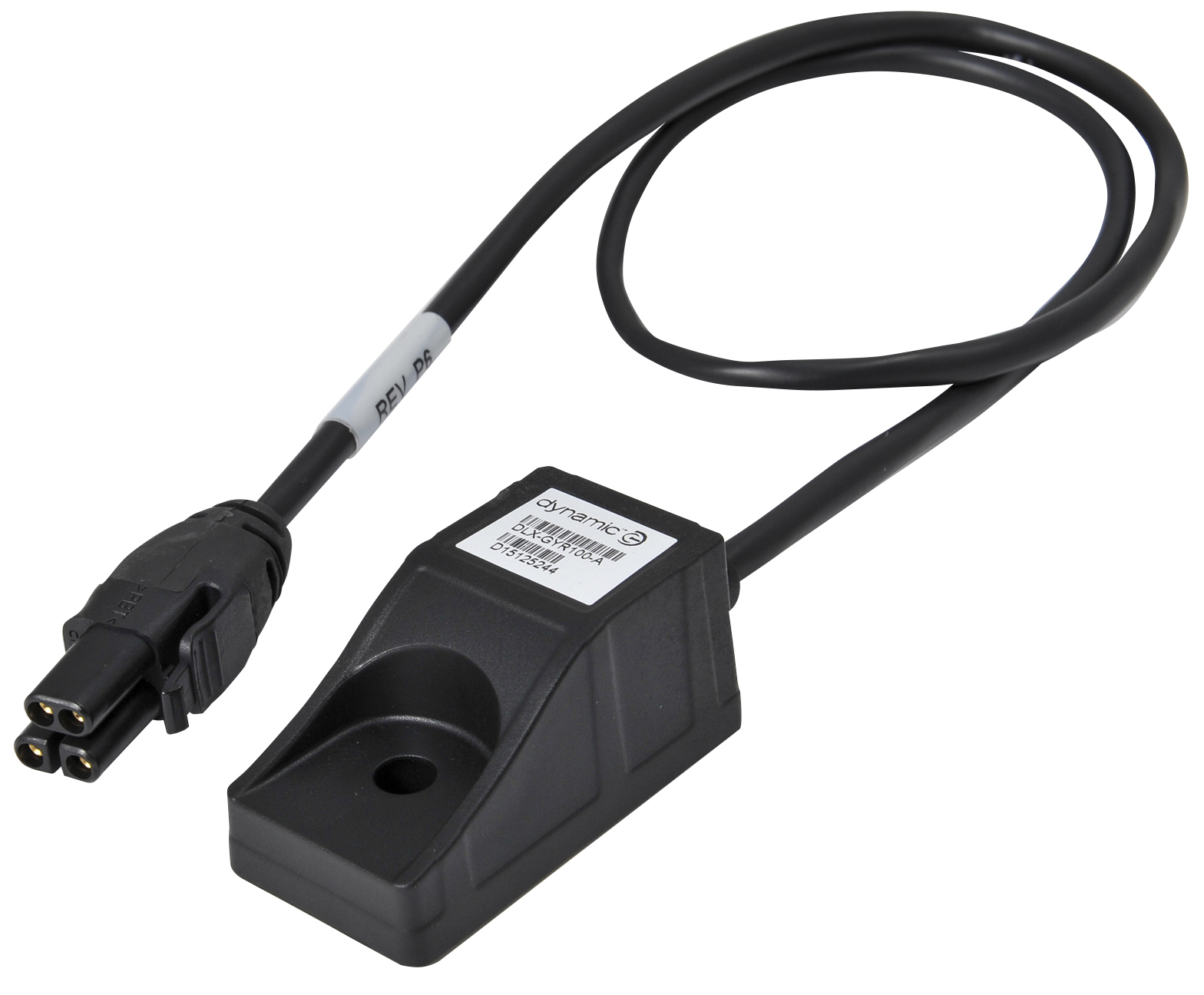

The LiNX gyro module technology ensures straighter driving by comparing input demand from a joystick or switch source with the direction that the wheelchair is tracking. When the system detects that the wheelchair is deviating from the intended course, it automatically corrects the path of travel. The LiNX gyro module has been designed to be compatible with any of the LiNX 100 or 200 series power modules and can be an after-market add on.

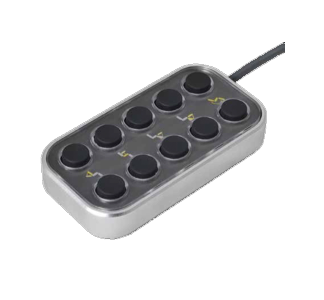

The LiNX 10-Way switch module introduces a flexible, direct access solution that can be tailored to clients’ needs. It’s a hardware-only module that provides a simple, easy to use method for accessing regularly used functionality. It is typically used for common seating functions but can also be used to switch to favourite drive functions, or to control lighting. The compact switch module has a removable label panel to support manufacturer customisation.

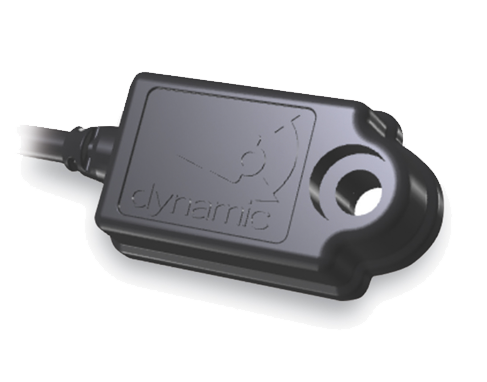

The LiNX 200 Angle Sensor can be paired with LiNX 200 or higher series to add precise angular control to seating functionality. Its highly compact design makes it easy to mount in space constrained designs, and highly flexible control input programming lets manufacturers create safe and comfortable seating experiences.
The LiNX 200 Input Module allows for external on/off switches, and other non-driving switch functions to be added to LiNX 110 or 200 remote series. The LiNX 500 Input Module is designed to easily add proportional and non-proportional speciality inputs to LiNX 400 remote or 500 display series. This module can provide control input for a full range of driving, seating and connectivity functionality, and it also has built in sip-and-puff controls for users with minimal movements.

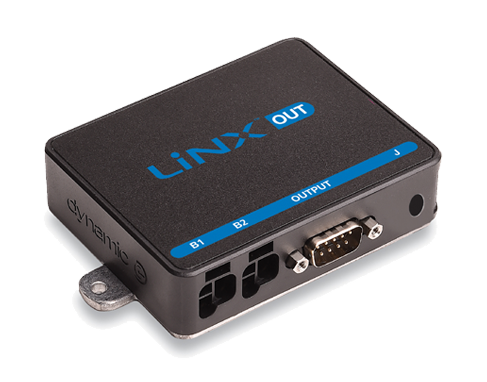

The LiNX 500 Output Module allows the LiNX system to interface with third party devices that require switched inputs to operate. The user can access and use the interfaced device through customized auxiliary functions shown on their LiNX 400 remote or LiNX 500 display screen.

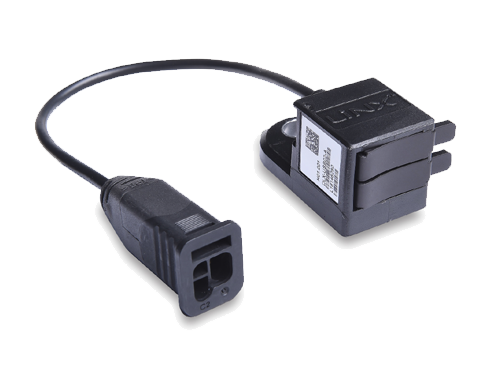

The LiNX USB charger allows for two devices to be charged at 1 ampere each. The compact design makes it easy to mount on seating infrastructure for safe and easy access. The charger is ideal for keeping personal electronic devices functioning throughout a day.
